MITSUBISHI SYSTEM 4 AIRCON MXY-4H38VG/2XMSXY-FP10VG/1XMSXY-FP13VG/1XMSXY-FP24

Product Information:

• Capacity (CU): 2X9000, 1X12000 & 1X24000 BTU
• NEA TICK: 5 Ticks
• Other Features: Easy to clean feature
• Other Features: Quietest 19db
• Other Features: Dual Barrier Coating
• Other Features: PM 2.5 filter
• Warranty: 1 Year(s)

Product Description

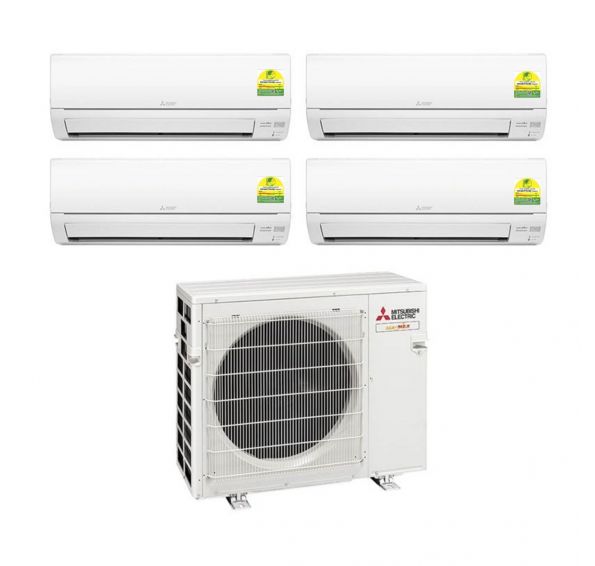

The Mitsubishi System 4 Aircon offers a powerful and efficient cooling solution for your home. With the ability to connect up to four indoor units, it ensures consistent climate control across multiple rooms. Its compact design and quiet operation make it an ideal choice for modern living spaces.

Key Features

• High Efficiency: Achieves industry-leading seasonal energy efficiency with advanced technology and high-performance compressor.
• Multi-Room Cooling: Supports up to 4 indoor units for comprehensive climate control.
• Compact Design: Space-saving dimensions make it suitable for various installation environments.
• Quiet Operation: Low sound levels ensure a peaceful environment.
• Flexible Installation: Flared connection method and extensive piping options.
• Reliable Performance: Consistent airflow and cooling capacity for optimal comfort.

Product Specifications

• MXY-4H38VG
  • Capacity (Min-Max): 8.0 (1.4-11.6) kW
  • Power Input: 1.62 kW
  • Starting Current: 7.22 A
  • Running Current: 7.22 A
  • Airflow: 59.2 CMM (m³/min)
  • Dimension (WxDxH): 950x330x796 mm
  • Net Weight: 58 kg
  • External Piping - Gas Diameter: 1noX12.70mm + 3noX9.52mm
  • External Piping - Liquid Diameter: 4noX6.35mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • No. of Connectable Indoor Units: 4
• MSXY-FP24VG
  • Rated Capacity: 7.1 kW
  • Power Input: 0.069 kW
  • Running Current: 0.60 A
  • Airflow Rate: 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)
  • Sound Level: 30-35-41-45-50 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 12.70 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP13VG
  • Rated Capacity: 3.5 kW
  • Power Input: 0.036 kW
  • Running Current: 0.33 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
  • Sound Level: 19-24-30-36-47 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

The Mitsubishi System 4 Aircon is ideal for homeowners seeking efficient cooling solutions for multiple rooms. Perfect for families or individuals who desire consistent climate control across various spaces.
