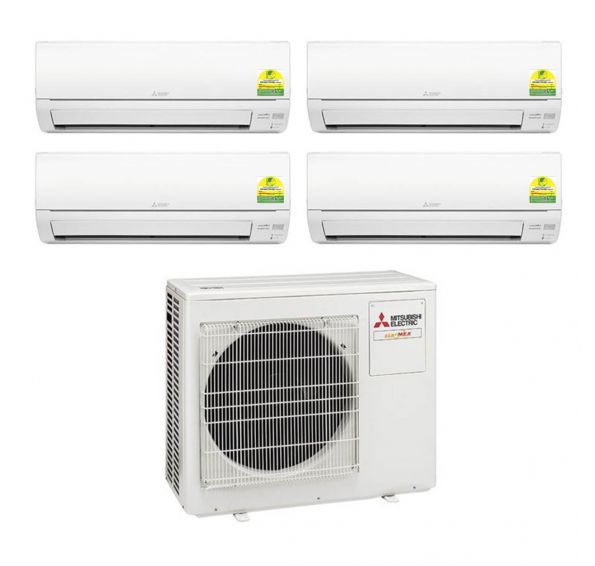

MITSUBISHI SYSTEM 4 AIRCON MXY-4H33VG/2XMSXY-FP10VG/1XMSXY-FP13VG/1XMSXY-FP24

Product Information:

• Capacity (CU): 2X9000, 1X12000 & 1X24000 BTU
• NEA TICK: 5 Ticks
• Other Features: Easy to clean feature
• Other Features: Quietest 19db
• Other Features: Dual Barrier Coating
• Other Features: PM 2.5 filter
• Warranty: 1 Year(s)

Product Description

The Mitsubishi System 4 Aircon offers superior cooling performance for large spaces. With its advanced inverter technology, it provides efficient and quiet operation, making it perfect for both homes and offices.

Key Features

• Efficient Cooling: Advanced inverter technology ensures optimal cooling efficiency across multiple rooms.
• Quiet Operation: Enjoy a peaceful environment with low noise levels during operation.
• Compact Design: Space-saving design fits seamlessly into any room decor.
• Energy Saving: High energy efficiency rating helps reduce electricity bills.
• Durable Build: Built with high-quality materials for long-lasting performance.
• Easy Installation: Simple setup process with flexible piping options.

Product Specifications

• MXY-4H33VG
  • Capacity (Min-Max): 6.9 (1.3-10.7) kW
  • Power Input: 1.42 kW
  • Starting Current: 6.37 A
  • Running Current: 6.37 A
  • Airflow: 38.7 CMM (m³/min)
  • Dimension (WxDxH): 840x330x710 mm
  • Net Weight: 56 kg
  • Outdoor Sound Level: 49 dB(A)
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1noX12.70mm+3noX9.52mm
  • External Piping - Liquid Diameter: 4noX6.35mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 1.85 kg (1.85 kg)
  • No. of Connectable Indoor Units: 4
  • Energy Labelling Scheme: i714/2646 kWh
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP13VG
  • Rated Capacity: 3.5 kW
  • Power Input: 0.036 kW
  • Running Current: 0.33 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
  • Sound Level: 19-24-30-36-47 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP24VG
  • Rated Capacity: 7.1 kW
  • Power Input: 0.069 kW
  • Running Current: 0.60 A
  • Airflow Rate: 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)
  • Sound Level: 30-35-41-45-50 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 12.70 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

This Mitsubishi System 4 Aircon is ideal for large homes or offices, providing efficient cooling for multiple rooms with its advanced inverter technology.
