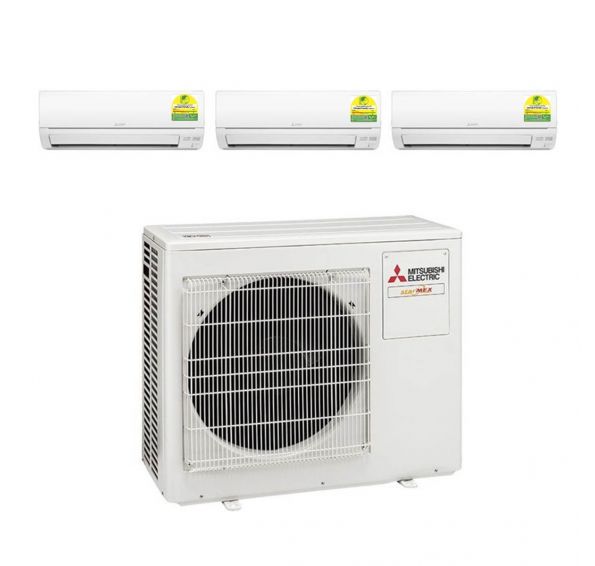

MITSUBISHI SYSTEM 3 AIRCON MXY-3H28VG/2XMSXY-FP10VG/1XMSXY-FP20VG

Product Information:

• Capacity (CU): 2X9000 & 1X20000 BTU
• NEA TICK: 5 Ticks
• Other Features: Easy to clean feature
• Other Features: Quietest 19db
• Other Features: Dual Barrier Coating
• Other Features: PM 2.5 filter
• Warranty: 1 Year(s)

Product Description

The Mitsubishi System 3 Aircon is a versatile and efficient cooling solution designed for modern homes and offices. With its advanced inverter technology, it offers powerful cooling while minimizing energy consumption. Its sleek design and quiet operation make it a perfect addition to any space, ensuring comfort and style.

Key Features

• Efficient Cooling: Delivers powerful cooling with a capacity range of 1.3-8.9kW, perfect for varying room sizes.
• Energy Saving: Equipped with inverter technology to reduce energy consumption and lower electricity bills.
• Quiet Operation: Enjoy a peaceful environment with sound levels as low as 19dB(A).
• Compact Design: Space-saving indoor units with sleek dimensions to fit any room decor.
• Advanced Airflow: Adjustable airflow rates to ensure optimal comfort in every corner of the room.
• Durable Build: Robust construction with high-quality materials for long-lasting performance.

Product Specifications

• MXY-3H28VG
  • Capacity (Min-Max): 6.5 (1.3-8.9) kW
  • Power Input: 1.33 kW
  • Starting Current: 5.93 A
  • Running Current: 5.93 A
  • Airflow: 38.7 CMM (m³/min)
  • Dimension (WxDxH): 840x330x710 mm
  • Net Weight: 55 kg
  • Outdoor Sound Level: 49 dB(A)
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 3noX9.52 mm
  • External Piping - Liquid Diameter: 3noX6.35 mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 60 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 1.65 kg
  • No. of Connectable Indoor Units: 3
• MSXY-FP20VG
  • Rated Capacity: 6.0 kW
  • Power Input: 0.059 kW
  • Running Current: 0.52 A
  • Airflow Rate: 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)
  • Sound Level: 30-35-41-45-50 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 12.70 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

This Mitsubishi System 3 Aircon is ideal for medium to large-sized homes or offices, providing efficient cooling for multiple rooms with its advanced inverter technology.
