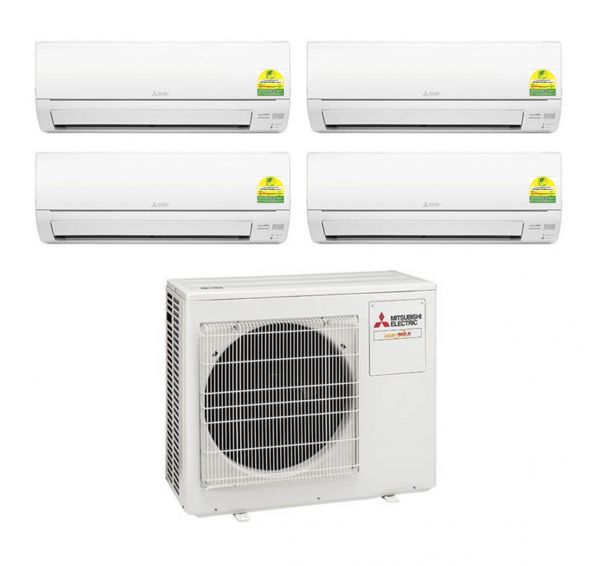

MITSUBISHI SYSTEM 4 AIRCON MXY-4H33VG/3XMSXY-FP10VG/1XMSXY-FP20VG

Product Information:

• Capacity (CU): 3X9000 & 1X20000 BTU
• NEA TICK: 5 Ticks
• Other Features: Easy to clean feature
• Other Features: Quietest 19db
• Other Features: Dual Barrier Coating
• Other Features: PM 2.5 filter
• Warranty: 1 Year(s)

Product Description

The Mitsubishi System 4 Aircon is a versatile and energy-efficient solution for cooling multiple rooms. With its advanced inverter technology, quiet operation, and flexible installation options, it is perfect for modern homes seeking comfort and efficiency.

Key Features

• Energy Efficient: Equipped with an advanced inverter technology that ensures optimal energy consumption, reducing electricity bills significantly.
• Quiet Operation: Designed to operate at low noise levels, ensuring a peaceful environment in your home.
• Flexible Installation: The system allows for various installation configurations, making it suitable for different room layouts.
• Durable Build: Made with high-quality materials that ensure long-lasting performance and reliability.
• Advanced Airflow: Features multiple airflow settings to provide consistent and comfortable cooling throughout the room.
• Environmentally Friendly: Uses R32 refrigerant, which has a lower environmental impact compared to traditional refrigerants.

Product Specifications

• MXY-4H33VG
  • Capacity (Min-Max): 6.9 (1.3-10.7) kW
  • Power Input: 1.42 kW
  • Starting Current: 6.37 A
  • Running Current: 6.37 A
  • Airflow: 38.7 CMM (m³/min)
  • Dimension (WxDxH): 840x330x710 mm
  • Net Weight: 56 kg
  • Outdoor Sound Level: 49 dB(A)
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1noX12.70mm + 3noX9.52mm
  • External Piping - Liquid Diameter: 4noX6.35mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 1.85 kg
  • No. of Connectable Indoor Units: 4
  • Energy Labelling Scheme: i714/2646 kWh
• MSXY-FP20VG
  • Rated Capacity: 6.0 kW
  • Power Input: 0.059 kW
  • Running Current: 0.52 A
  • Airflow Rate: 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)
  • Sound Level: 30-35-41-45-50 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 12.70 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

This Mitsubishi System 4 Aircon is ideal for homeowners looking to efficiently cool multiple rooms with a single outdoor unit. Perfect for families or shared living spaces, it offers flexibility and energy efficiency.
