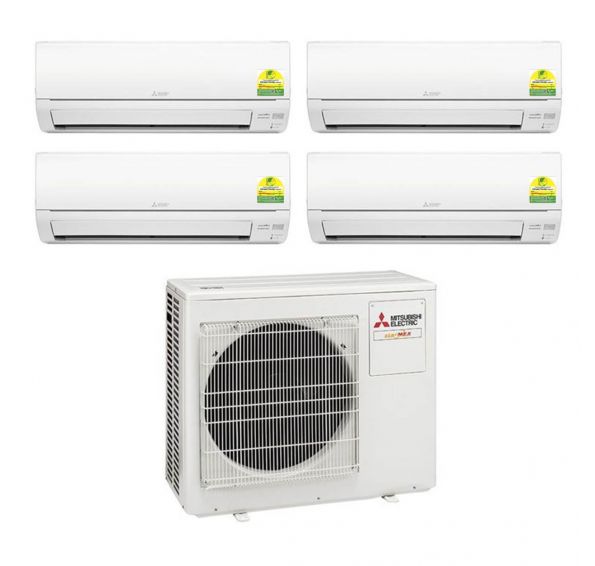

MITSUBISHI SYSTEM 4 AIRCON MXY-4H33VG/2XMSXY-FP10VG/2XMSXY-FP18VG

Product Information:

• Capacity (CU): 2X9000 & 2X18000 BTU
• NEA TICK: 5 Ticks
• Other Features: Easy to clean feature
• Other Features: Quietest 19db
• Other Features: Dual Barrier Coating
• Other Features: PM 2.5 filter
• Warranty: 1 Year(s)

Product Description

The Mitsubishi System 4 Aircon MXY-4H33VG/2XMSXY-FP10VG/2XMSXY-FP18VG offers powerful and efficient cooling for multiple rooms. With advanced inverter technology, it ensures energy savings and quiet operation, making it ideal for both residential and commercial spaces.

Key Features

• Advanced Inverter Technology: Ensures efficient cooling with reduced energy consumption, making it eco-friendly and cost-effective.
• Multi-Room Cooling: Capable of cooling multiple rooms simultaneously, perfect for homes and offices.
• Quiet Operation: Designed to operate quietly, ensuring a peaceful environment.
• Compact Design: Sleek and compact design that fits seamlessly into any space.
• Durable Build: Built with high-quality materials for long-lasting performance.
• Easy Installation: Comes with a simple installation process, saving time and effort.

Product Specifications

• MXY-4H33VG
  • Capacity (Min-Max): 6.9 (1.3-10.7) kW
  • Power Input: 1.42 kW
  • Starting Current: 6.37 A
  • Running Current: 6.37 A
  • Airflow: 38.7 CMM (m³/min)
  • Dimension (WxDxH): 840x330x710 mm
  • Net Weight: 56 kg
  • Outdoor Sound Level: 49 dB(A)
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1no X 12.70 mm + 3no X 9.52 mm
  • External Piping - Liquid Diameter: 4no X 6.35 mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 1.85 kg
  • No. of Connectable Indoor Units: 4
  • Energy Labelling Scheme: i714/2646 kWh
• MSXY-FP18VG
  • Rated Capacity: 5.0 kW
  • Power Input: 0.042 kW
  • Running Current: 0.38 A
  • Airflow Rate: 6.2-7.7-9.5-12.1-14.8 CMM (m³/min)
  • Sound Level: 28-33-38-44-49 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

This Mitsubishi System 4 Aircon is ideal for medium to large-sized homes or offices, providing efficient cooling for multiple rooms with its advanced inverter technology.
