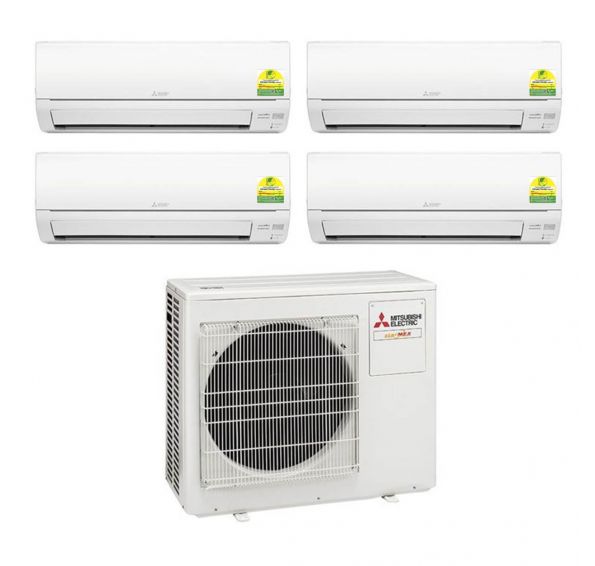

MITSUBISHI SYSTEM 4 AIRCON MXY-4H33VG/1XMSXY-FP10VG/1XMSXY-FP13VG/2XMSXY-FP18

Product Information:

• Capacity (CU): 1X9000, 1X12000 & 2X18000 BTU
• NEA TICK: 5 Ticks
• Other Features: Easy to clean feature
• Other Features: Quietest 19db
• Other Features: Dual Barrier Coating
• Other Features: PM 2.5 filter
• Warranty: 1 Year(s)

Product Description

Experience ultimate comfort with the Mitsubishi System 4 Aircon MXY-4H33VG/1XMSXY-FP10VG/1XMSXY-FP13VG/2XMSXY-FP18. This advanced air conditioning system offers high energy efficiency, customizable multi-split options, and a durable build, making it perfect for cooling multiple rooms with ease and reliability.

Key Features

• High Energy Efficiency: Achieve optimal cooling with minimal energy consumption, thanks to advanced inverter technology.
• Multi-Split System: Connect up to four indoor units to a single outdoor unit, providing customized comfort in multiple rooms.
• Quiet Operation: Enjoy a peaceful environment with low sound levels, ensuring a comfortable and quiet atmosphere.
• Compact Design: Sleek and modern design that fits seamlessly into any interior space.
• Advanced Air Filtration: Breathe easy with advanced filters that remove dust and allergens from the air.
• Durable Build: Built to last with high-quality materials and construction, ensuring long-term reliability.

Product Specifications

MXY-4H33VG

• Capacity (Min-Max): 6.9 (1.3-10.7) kW
• Power Input: 1.42 kW
• Power Input: 0.91 kW
• Rated Capacity: 5.0 kW
• Starting Current: 6.37 A
• Running Current: 6.37 A
• Airflow Rate: 38.4 CFM
• Sound Level: 49 dB(A)
• Connection Method (Indoor/Outdoor): Flared
• External Piping - Gas Diameter: 1 no X 12.70 mm + 3 no X 9.52 mm
• External Piping - Liquid Diameter: 4 no X 6.35 mm
• Max Length (Each): 25 m
• Max Piping Length: 70 m
• Energy Labelling Scheme: 1714/2646 kWh

MSXY-FP18VG

• Rated Capacity: 5.0 kW
• Power Input: 0.042 kW
• Running Current: 6.37 A
• Airflow Rate: 38.7 CFM
• Sound Level: 49 dB(A)
• Dimension (WxDxH): 923x250x305 mm
• Net Weight: 13 kg
• External Piping - Gas Diameter: 9.52 mm
• External Piping - Liquid Diameter: 6.35 mm

MSXY-FP13VG

• Rated Capacity: 3.5 kW
• Power Input: 0.042 kW
• Running Current: 0.042 A
• Airflow Rate: 35.3 CFM
• Sound Level: 19 dB(A)
• Dimension (WxDxH): 799x232x290 mm
• Net Weight: 9 kg
• External Piping - Gas Diameter: 9.52 mm
• External Piping - Liquid Diameter: 6.35 mm

MSXY-FP10VG

• Rated Capacity: 3.5 kW
• Power Input: 0.028 kW
• Running Current: 0.27 A
• Airflow Rate: 33.5 CFM
• Sound Level: 19 dB(A)
• Dimension (WxDxH): 799x232x290 mm
• Net Weight: 9 kg
• External Piping - Gas Diameter: 9.52 mm
• External Piping - Liquid Diameter: 6.35 mm

Ideal For

This Mitsubishi System 4 Aircon is ideal for families and businesses looking for efficient and reliable cooling solutions. Perfect for homes and offices that require multiple indoor units with a single outdoor unit, providing comfort and energy efficiency.
