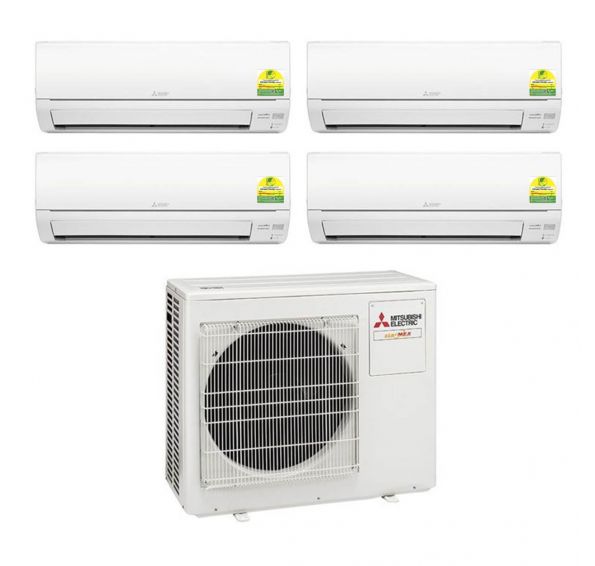

MITSUBISHI SYSTEM 4 AIRCON MXY-4H33VG/1XMSXY-FP10VG/2XMSXY-FP13VG/1XMSXY-FP18

Product Information:

• Capacity (CU): 1X9000, 2X12000 & 1X18000 BTU
• NEA TICK: 5 Ticks
• Other Features: Easy to clean feature
• Other Features: Quietest 19db
• Other Features: Dual Barrier Coating
• Other Features: PM 2.5 filter
• Warranty: 1 Year(s)

Product Description

Product Overview:

The Mitsubishi System 4 Aircon Mxy-4h33vg/1Xmsxy-Fp10vg/2Xmsxy-Fp13vg/1Xmsxy-Fp18 is a high-performance, energy-efficient air conditioning system designed for multi-room cooling. With its advanced inverter technology, it offers a wide capacity range from 1.3 to 10.7 kW, ensuring optimal temperature control and energy savings. Ideal for both residential and commercial spaces, this system provides quiet operation and a comfortable environment.

Key Features

• Efficient Cooling: With a capacity range of 6.9kW (1.3-6.9), this air conditioner ensures optimal cooling for various room sizes.

• Quiet Operation: Enjoy a peaceful environment with an outdoor sound level of just 49dB(A).

• Flexible Installation: The system supports up to 4 connectable indoor units, allowing for versatile installation options.

• Advanced Energy Efficiency: Features an Energy Labelling Scheme of i714/2646kWh for cost-effective operation.

• Durable Design: Built with high-quality materials, the unit has a net weight of 56kg and dimensions of 840x330x710mm.

• Environmentally Friendly: Uses R32 refrigerant, which is more eco-friendly and efficient.

Product Specifications

• MXY-4H33VG

  • Capacity (Min-Max): 6.9 (1.3-10.7) kW

  • Net Weight: 56 kg

  • Dimension (WxDxH): 840x330x710 mm

  • Outdoor Sound Level: 49 dB(A)

  • Connection Method (Indoor/Outdoor): Flared

  • External Piping - Gas Diameter: 1noX12.70mm+3noX9.52mm

  • Pre-charged Refrigerant Quantity (Max): 1.85 kg

  • Max No. of Connectable Indoor Units: 4

  • Energy Labelling Scheme: i714/2646 kWh

  • Power Supply: 230V, 1 Phase, 50Hz

  • Net Weight: 56 kg

  • Refrigerant Type: R32

• MSXY-FP10VG

  • Dimension (WxDxH): 799x232x290 mm

  • Sound Level: 19-24-29-36-45 dB(A)

  • Rated Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)

  • Rated Cooling Capacity: 2.5 kW

• MSXY-FP13VG

  • Rated Capacity: 3.5 kW

  • Airflow Rate: 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)

  • Sound Level: 19-24-30-36-47 dB(A)

  • Dimension (WxDxH): 799x232x290 mm

  • Net Weight: 10 kg

• MSXY-FP18VG

  • Rated Capacity: 5.0 kW

  • Airflow Rate: 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)

  • Sound Level: 19-24-30-36-47 dB(A)

  • Dimension (WxDxH): 799x232x290 mm

  • Net Weight: 56 kg

Ideal For

The Mitsubishi System 4 Aircon is ideal for those seeking efficient and reliable air conditioning solutions for their homes or offices. Perfect for maintaining a comfortable environment in multiple rooms with its multi-split system.
