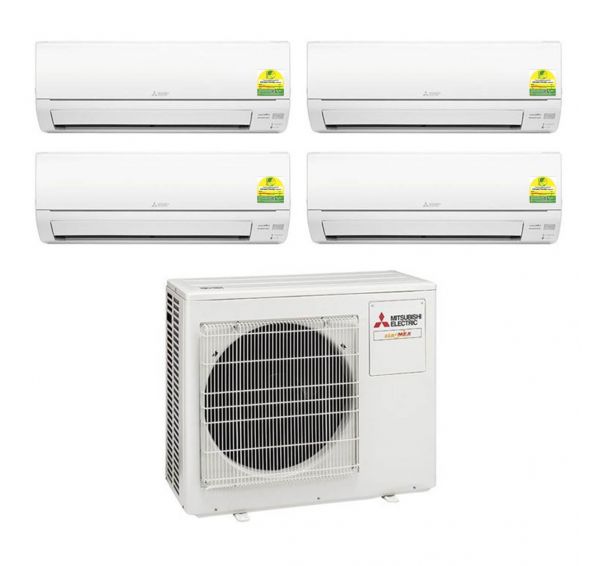

MITSUBISHI SYSTEM 4 AIRCON MXY-4H33VG/2XMSXY-FP13VG/2XMSXY-FP18VG

Product Information:

• Capacity (CU): 2X12000 & 2X18000 BTU
• NEA TICK: 5 Ticks
• Other Features: Easy to clean feature
• Other Features: Quietest 19db
• Other Features: Dual Barrier Coating
• Other Features: PM 2.5 filter
• Warranty: 1 Year(s)

Product Description

The Mitsubishi System 4 Aircon MXY-4H33VG/2XMSXY-FP13VG/2XMSXY-FP18VG is a top-tier air conditioning solution designed for large spaces. It combines energy efficiency with quiet operation, making it ideal for both residential and commercial use. With its advanced airflow technology and sleek design, it ensures optimal comfort and style.

Key Features

• Energy Efficient: Designed to provide maximum cooling with minimal energy consumption, saving on electricity bills.
• Quiet Operation: Enjoy a peaceful environment with low noise levels, perfect for homes and offices.
• Advanced Airflow: Ensures even distribution of air across the room for consistent comfort.
• Compact Design: Sleek and modern design that fits seamlessly into any interior.
• Durable Build: Built with high-quality materials for long-lasting performance.
• Easy Installation: Comes with a simple installation process, reducing setup time and hassle.

Product Specifications

• MXY-4H33VG
  • Capacity (Min-Max): 6.9 (1.3-10.7) kW
  • Power Input: 1.42 kW
  • Starting Current: 6.37 A
  • Running Current: 6.37 A
  • Airflow: 38.7 CMM (m³/min)
  • Dimension (WxDxH): 840x330x710 mm
  • Net Weight: 56 kg
  • Outdoor Sound Level: 49 dB(A)
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1no X 12.70 mm + 3no X 9.52 mm
  • External Piping - Liquid Diameter: 4no X 6.35 mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 1.85 kg
  • No. of Connectable Indoor Units: 4
  • Energy Labelling Scheme: i714/2646 kWh
• MSXY-FP13VG
  • Rated Capacity: 3.5 kW
  • Power Input: 0.036 kW
  • Running Current: 0.33 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
  • Sound Level: 19-24-30-36-47 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP18VG
  • Rated Capacity: 5.0 kW
  • Power Input: 0.042 kW
  • Running Current: 0.38 A
  • Airflow Rate: 6.2-7.7-9.5-12.1-14.8 CMM (m³/min)
  • Sound Level: 28-33-38-44-49 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

This Mitsubishi System 4 Aircon is ideal for large homes or offices that require efficient cooling across multiple rooms. Perfect for those who value energy efficiency and quiet operation.
