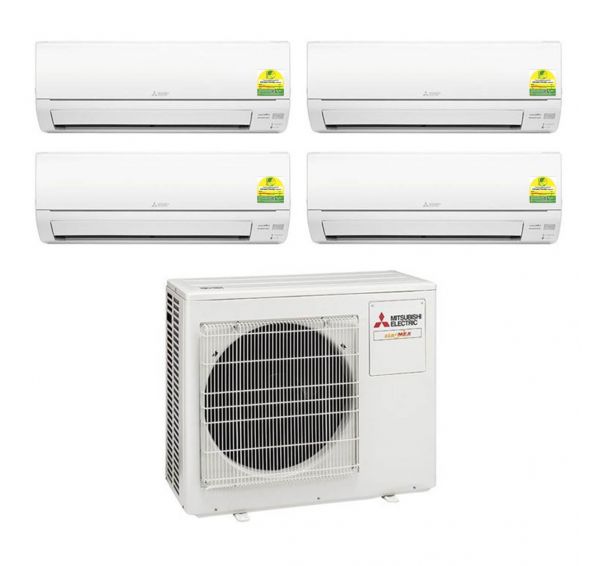

MITSUBISHI SYSTEM 4 AIRCON MXY-4H33VG/3XMSXY-FP13VG/1XMSXY-FP18VG

Product Information:

• Capacity (CU): 3X12000 & 1X18000 BTU
• NEA TICK: 5 Ticks
• Other Features: Easy to clean feature
• Other Features: Quietest 19db
• Other Features: Dual Barrier Coating
• Other Features: PM 2.5 filter
• Warranty: 1 Year(s)

Product Description

The Mitsubishi System 4 Aircon offers a comprehensive cooling solution for homes with multiple rooms. Featuring energy-efficient technology and quiet operation, it ensures comfort without compromising on performance.

Key Features

• Energy Efficient: Utilizes R32 refrigerant for lower environmental impact and high efficiency.
• Quiet Operation: Designed to operate with minimal noise, ensuring a peaceful environment.
• Flexible Installation: Supports up to 4 indoor units, perfect for multi-room setups.
• Advanced Airflow: Adjustable airflow rates for optimal comfort in any room size.
• Compact Design: Space-saving dimensions for easy installation in various locations.
• Reliable Performance: High COP values ensure consistent cooling performance.

Product Specifications

• MXY-4H33VG
  • Capacity (Min-Max): 6.9 (1.3-10.7) kW
  • Power Input: 1.42 kW
  • Starting Current: 6.37 A
  • Running Current: 6.37 A
  • Airflow: 38.7 CMM (m³/min)
  • Dimension (WxDxH): 840x330x710 mm
  • Net Weight: 56 kg
  • Outdoor Sound Level: 49 dB(A)
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1noX12.70mm + 3noX9.52mm
  • External Piping - Liquid Diameter: 4noX6.35mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 1.85 kg
  • No. of Connectable Indoor Units: 4
  • Energy Labelling Scheme: i714/2646 kWh
• MSXY-FP18VG
  • Rated Capacity: 5.0 kW
  • Power Input: 0.042 kW
  • Running Current: 0.38 A
  • Airflow Rate: 6.2-7.7-9.5-12.1-14.8 CMM (m³/min)
  • Sound Level: 28-33-38-44-49 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP13VG
  • Rated Capacity: 3.5 kW
  • Power Input: 0.036 kW
  • Running Current: 0.33 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
  • Sound Level: 19-24-30-36-47 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

This Mitsubishi System 4 Aircon is ideal for homeowners seeking efficient cooling solutions for multiple rooms. Perfect for those who value energy efficiency and quiet operation.
