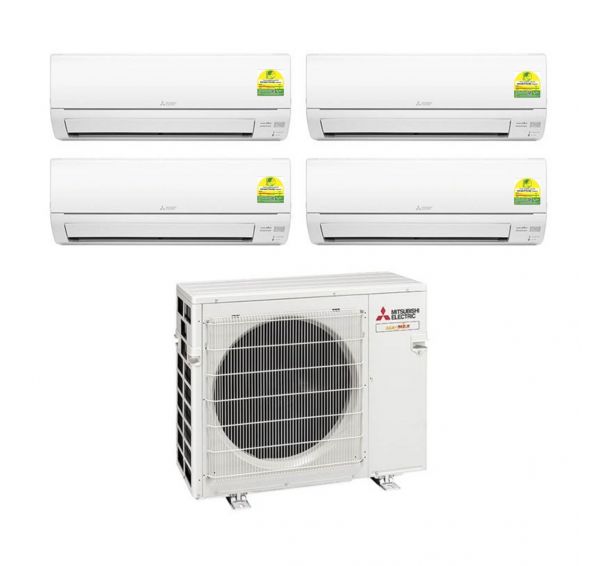

MITSUBISHI SYSTEM 4 AIRCON MXY-4H38VG/4XMSXY-FP10VG

Product Information:

• Capacity (CU): 4X9000 BTU
• NEA TICK: 5 Ticks
• Other Features: Easy to clean feature
• Other Features: Quietest 19db
• Other Features: Dual Barrier Coating
• Other Features: PM 2.5 filter
• Warranty: 1 Year(s)

Product Description

The Mitsubishi System 4 Aircon MXY-4H38VG/4XMSXY-FP10VG is a versatile and efficient cooling solution designed for medium to large spaces. With its high energy efficiency, quiet operation, and flexible installation options, it is perfect for both residential and commercial use.

Key Features

• High Efficiency: Achieve optimal cooling with a capacity range of 8.0 kW, perfect for varying room sizes.
• Energy Saving: Equipped with an energy-efficient compressor, reducing electricity consumption significantly.
• Quiet Operation: Enjoy a peaceful environment with a low noise level of 49 dB(A).
• Flexible Installation: Supports up to 4 indoor units, allowing for versatile placement options.
• Advanced Refrigerant: Utilizes R32 refrigerant for superior cooling performance and environmental friendliness.
• Robust Design: Durable construction with a net weight of 58 kg, ensuring long-lasting performance.

Product Specifications

• MXY-4H38VG
  • Capacity (Min-Max): 8.0 (1.4-11.6) kW
  • Power Input: 1.62 kW
  • Starting Current: 7.22 A
  • Running Current: 7.22 A
  • Airflow: 59.2 CMM (m³/min)
  • Dimension (WxDxH): 950x330x796 mm
  • Net Weight: 58 kg
  • Outdoor Sound Level: 49 dB(A)
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1no x 12.70 mm + 3no x 9.52 mm
  • External Piping - Liquid Diameter: 4no x 6.35 mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 2.00 kg
  • No. of Connectable Indoor Units: 4
  • Energy Labelling Scheme: 1790/2926 kWh
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

This Mitsubishi System 4 Aircon is ideal for medium to large spaces, perfect for homes and offices seeking efficient cooling solutions with multiple indoor units.
