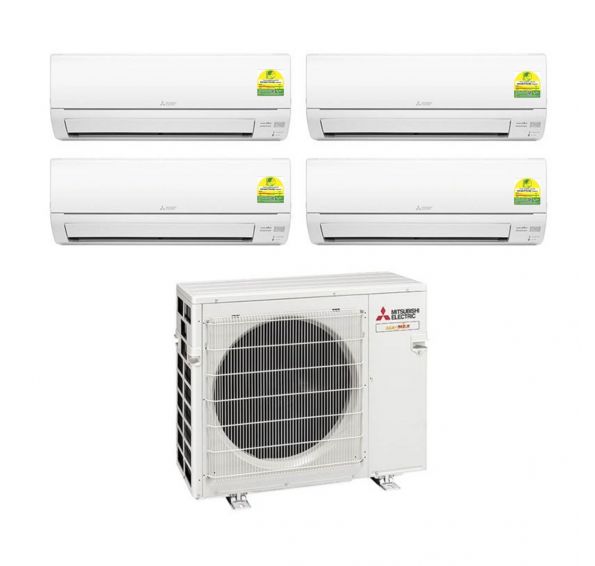

MITSUBISHI SYSTEM 4 AIRCON MXY-4H38VG/3XMSXY-FP10VG/1XMSXY-FP24VG

Product Information:

• Capacity (CU): 3X9000 & 1X24000 BTU
• NEA TICK: 5 Ticks
• Other Features: Easy to clean feature
• Other Features: Quietest 19db
• Other Features: Dual Barrier Coating
• Other Features: PM 2.5 filter
• Warranty: 1 Year(s)

Product Description

The Mitsubishi System 4 Aircon MXY-4H38VG/3XMSXY-FP10VG/1XMSXY-FP24VG offers a powerful and efficient cooling solution for multiple rooms. With its advanced technology, it ensures energy efficiency and quiet operation, making it perfect for family homes. Its sleek design and flexible installation options make it a versatile choice for any home decor.

Key Features

• Energy Efficient: Designed to achieve industry-leading seasonal energy efficiency with advanced technology and high-performance compressors.
• Quiet Operation: Enjoy a peaceful environment with sound levels as low as 19dB(A) for indoor units.
• Flexible Installation: Connect up to 4 indoor units with a maximum piping length of 70m, offering versatile installation options.
• Powerful Cooling: Provides a cooling capacity of up to 11.6kW, ensuring comfort even in larger spaces.
• Compact Design: Sleek and compact indoor units that blend seamlessly into any room decor.
• Advanced Airflow: Optimized airflow rates for efficient cooling distribution throughout the room.

Product Specifications

• MXY-4H38VG
  • Capacity (Min-Max): 8.0 (1.4-11.6) kW
  • Power Input: 1.62 kW
  • Starting Current: 7.22 A
  • Running Current: 7.22 A
  • Airflow: 59.2 CMM (m³/min)
  • Dimension (WxDxH): 950x330x796 mm
  • Net Weight: 58 kg
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1noX12.70mm + 3noX9.52mm
  • External Piping - Liquid Diameter: 4noX6.35mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 2.00 kg
  • No. of Connectable Indoor Units: 4
• MSXY-FP24VG
  • Rated Capacity: 7.1 kW
  • Power Input: 0.069 kW
  • Running Current: 0.60 A
  • Airflow Rate: 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)
  • Sound Level: 30-35-41-45-50 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 12.70 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

The Mitsubishi System 4 Aircon is ideal for homeowners seeking efficient and powerful cooling solutions for multiple rooms. Perfect for families or individuals who value energy efficiency and quiet operation in their air conditioning systems.
