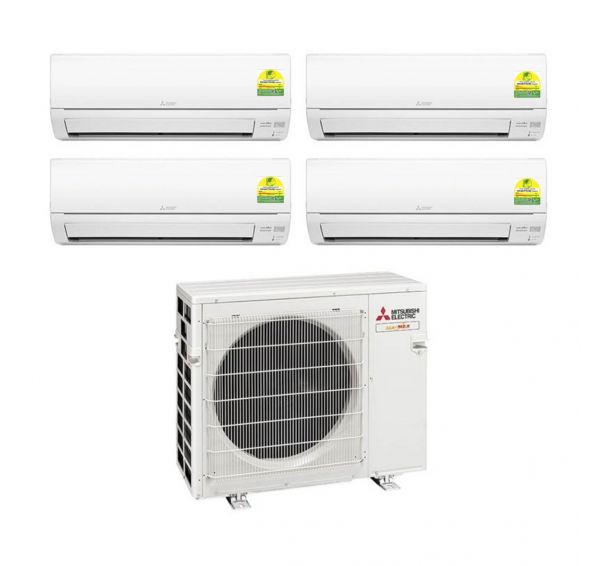

MITSUBISHI SYSTEM 4 AIRCON MXY-4H38VG/2XMSXY-FP10VG/1XMSXY-FP13VG/1XMSXY-FP20

Product Information:

• Capacity (CU): 2X9000, 1X12000 & 1X20000 BTU
• NEA TICK: 5 Ticks
• Other Features: Easy to clean feature
• Other Features: Quietest 19db
• Other Features: Dual Barrier Coating
• Other Features: PM 2.5 filter
• Warranty: 1 Year(s)

Product Description

The Mitsubishi System 4 Aircon MXY-4H38VG/2XMSXY-FP10VG/1XMSXY-FP13VG/1XMSXY-FP20 is a high-efficiency air conditioning solution perfect for homes and offices. With its advanced technology and high-performance compressor, it offers superior cooling while being energy efficient and quiet, making it an ideal choice for those seeking comfort and savings.

Key Features

• High Efficiency: The Mitsubishi System 4 Aircon offers industry-leading seasonal energy efficiency with advanced technologies and a high-performance compressor.

• Flexible Capacity: Features a variable capacity range from 1.4 to 11.6 kW, ensuring optimal cooling for different room sizes.

• Energy Saving: With a power input of just 1.62 kW, this air conditioner is designed to save energy while providing powerful cooling.

• Quiet Operation: Enjoy a peaceful environment with a sound level of just 49 dB(A), ensuring minimal noise disruption.

• Compact Design: The outdoor unit is compact with dimensions of 950 x 330 x 796 mm, making it easy to install in various spaces.

• Advanced Technology: Equipped with a high-performance compressor and R32 refrigerant for optimal energy efficiency.

Product Specifications

• MXY-4H38VG

  • Capacity (Min-Max): 8.0 (1.4-11.6) kW

  • Power Input: 1.62 kW

  • Starting Current: 7.22 A

  • Running Current: 7.22 A

  • Airflow: 8.0 CMM (m³/min)

  • Dimension: 950 x 330 x 796 mm

  • Connection Method (Indoor/Outdoor): Flared

  • External Piping - Gas Diameter: 1 no X 12.70 mm + 3 no X 9.52 mm

  • External Piping - Liquid Diameter: 4 no X 6.35 mm

  • Max Piping Length (Each): 25 m

  • Max Piping Length (Total): 70 m

  • Refrigerant: R32

  • Net Weight: 58 kg

  • Power Supply: 1790/2926 kWh

  • Number of Connectable Indoor Units: 4

• MSXY-FP10VG

  • Rated Capacity: 2.8 kW

  • Power Input: 0.028 kW

  • Running Current: 0.27 A

  • Airflow Rate: 4.1-5.1-6.3-9.5 CMM (m³/min)

  • Net Weight: 9 kg

  • External Piping - Gas Diameter: 9.52 mm

  • External Piping - Liquid Diameter: 6.35 mm

• MSXY-FP13VG

  • Rated Capacity: 3.5 kW

  • Power Input: 0.036 kW

  • Running Current: 0.33 A

  • Airflow Rate: 4.1-5.1-6.3-9.1 CMM (m³/min)

  • Net Weight: 9 kg

  • External Piping - Gas Diameter: 9.52 mm

  • External Piping - Liquid Diameter: 6.35 mm

• MSXY-FP20VG

  • Rated Capacity: 6.0 kW

  • Power Input: 0.059 kW

  • Running Current: 0.52 A

  • Airflow Rate: 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)

  • Sound Level: 30-35-41-45-50 dB(A)

  • Dimension (WxDxH): 923x250x305 mm

  • Net Weight: 13 kg

  • External Piping - Gas Diameter: 12.70 mm

  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

The Mitsubishi System 4 Aircon is ideal for homes and offices seeking efficient and reliable cooling solutions with multiple indoor units for different rooms.
