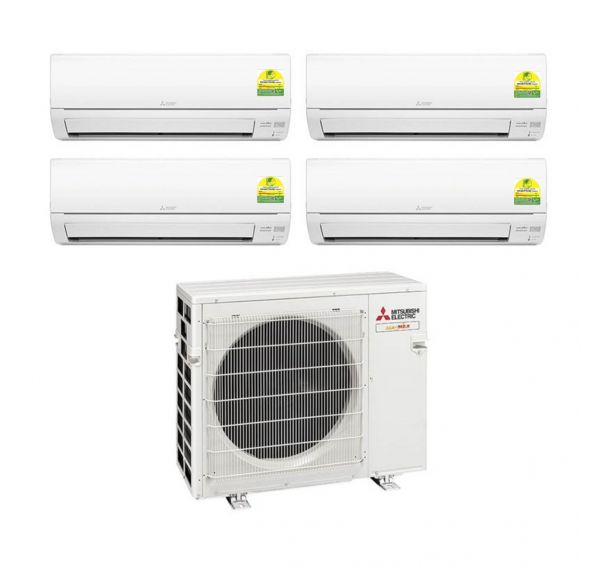

MITSUBISHI SYSTEM 4 AIRCON MXY-4H38VG/1XMSXY-FP10VG/1XMSXY-FP13VG/2XMSXY-FP18

Product Information:

• Capacity (CU): 1X9000, 1X12000 & 2X18000 BTU
• NEA TICK: 5 Ticks
• Other Features: Easy to clean feature
• Other Features: Quietest 19db
• Other Features: Dual Barrier Coating
• Other Features: PM 2.5 filter
• Warranty: 1 Year(s)

Product Description

The Mitsubishi System 4 Aircon offers a comprehensive cooling solution with its multiple indoor units and efficient outdoor unit. Ideal for homes with diverse cooling needs, it combines energy efficiency, quiet operation, and advanced technology to deliver superior comfort.

Key Features

• Energy Efficient: Designed with advanced technology to ensure high seasonal energy efficiency, saving on electricity bills.
• Quiet Operation: Enjoy a peaceful environment with low noise levels, perfect for bedrooms and living rooms.
• Flexible Installation: Suitable for various room sizes with multiple indoor units for customized cooling.
• Durable Build: Built to last with high-quality materials and robust construction.
• Advanced Airflow: Optimized airflow design for even cooling distribution across the room.
• Environmentally Friendly: Uses R32 refrigerant, which is more eco-friendly and efficient.

Product Specifications

• MXY-4H38VG
  • Capacity (Min-Max): 8.0 (1.4-11.6) kW
  • Power Input: 1.62 kW
  • Starting Current: 7.22 A
  • Running Current: 7.22 A
  • Airflow: 59.2 CMM (m³/min)
  • Dimension (WxDxH): 950x330x796 mm
  • Net Weight: 58 kg
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1 no X 12.70 mm + 3 no X 9.52 mm
  • External Piping - Liquid Diameter: 4 no X 6.35 mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 2.00 kg
  • No. of Connectable Indoor Units: 4
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP13VG
  • Rated Capacity: 3.5 kW
  • Power Input: 0.036 kW
  • Running Current: 0.33 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
  • Sound Level: 19-24-30-36-47 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP18VG
  • Rated Capacity: 5.0 kW
  • Power Input: 0.042 kW
  • Running Current: 0.38 A
  • Airflow Rate: 6.2-7.7-9.5-12.1-14.8 CMM (m³/min)
  • Sound Level: 28-33-38-44-49 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

This Mitsubishi System 4 Aircon is ideal for homeowners seeking efficient and reliable cooling solutions for multiple rooms. Perfect for families or individuals who value energy efficiency and quiet operation.
