MITSUBISHI SYSTEM 4 AIRCON MXY-4H38VG/1XMSXY-FP10VG/2XMSXY-FP13VG/1XMSXY-FP20

Product Information:

• Capacity (CU): 1X9000, 2X12000 & 1X20000 BTU
• NEA TICK: 5 Ticks
• Other Features: Easy to clean feature
• Other Features: Quietest 19db
• Other Features: Dual Barrier Coating
• Other Features: PM 2.5 filter
• Warranty: 1 Year(s)

Product Description

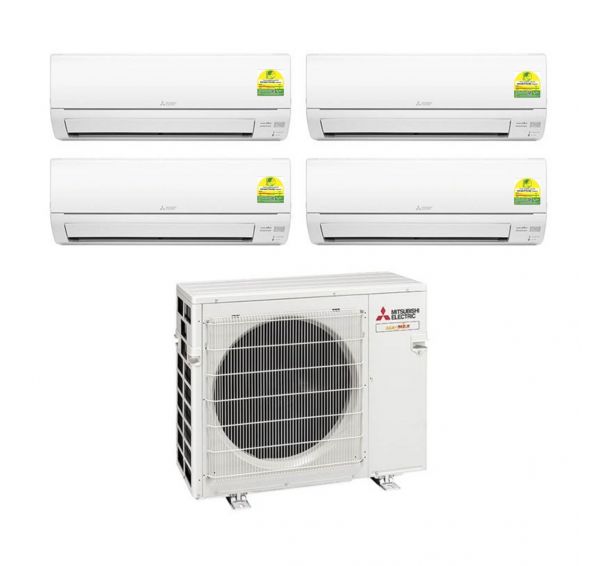

The Mitsubishi System 4 Aircon Mxy-4h38vg/1xmsxy-fp10vg/2xmsxy-fp13vg/1xmsxy-fp20 is a top-of-the-line air conditioning solution for both homes and offices. With its high cooling capacity and energy-efficient R32 refrigerant, it ensures a comfortable environment while keeping energy costs low. Designed for quiet operation, it is perfect for maintaining a peaceful atmosphere. The system includes multiple indoor units, making it ideal for cooling multiple rooms efficiently.

Key Features

• High Capacity: Offers a powerful cooling capacity of up to 6.9 kW, perfect for large spaces.
• Energy Efficient: Equipped with R32 refrigerant and a high energy efficiency ratio, ensuring lower electricity bills.
• Quiet Operation: Enjoy a peaceful environment with sound levels as low as 19 dB(A).
• Flexible Airflow: Adjustable airflow rates ranging from 4.1 to 20.0 CMM for customized comfort.
• Compact Design: Sleek dimensions fit various room sizes without compromising on style.
• Advanced Technology: Features Mitsubishi's reliable technology for consistent and efficient cooling performance.

Product Specifications

• MXY-4H38VG
  • Capacity (Min-Max): 8.0 (1.4-11.6) kW
  • Power Input: 1.62 kW
  • Starting Current: 7.22 A
  • Running Current: 7.22 A
  • Airflow: 59.2 CMM (m³/min)
  • Dimension (WxDxH): 950x330x796 mm
  • Net Weight: 58 kg
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1noX12.70mm + 3noX9.52mm
  • External Piping - Liquid Diameter: 4noX6.35mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 2.00 kg
  • No. of Connectable Indoor Units: 4
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP13VG
  • Rated Capacity: 3.5 kW
  • Power Input: 0.036 kW
  • Running Current: 0.33 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
  • Sound Level: 19-24-30-36-47 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP20VG
  • Rated Capacity: 6.0 kW
  • Power Input: 0.059 kW
  • Running Current: 0.52 A
  • Airflow Rate: 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)
  • Sound Level: 30-35-41-45-50 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 12.70 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

The Mitsubishi System 4 Aircon is ideal for those looking to efficiently cool multiple rooms with a single outdoor unit. Perfect for homes or offices seeking a reliable and energy-efficient air conditioning solution.
