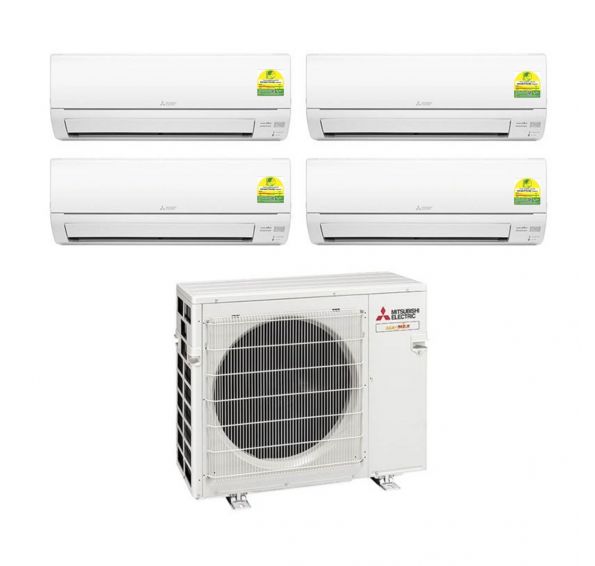

MITSUBISHI SYSTEM 4 AIRCON MXY-4H38VG/3XMSXY-FP13VG/1XMSXY-FP24VG

Product Information:

• Capacity (CU): 3X12000 & 1X24000 BTU
• NEA TICK: 5 Ticks
• Other Features: Easy to clean feature
• Other Features: Quietest 19db
• Other Features: Dual Barrier Coating
• Other Features: PM 2.5 filter
• Warranty: 1 Year(s)

Product Description

The Mitsubishi System 4 Aircon MXY-4H38VG/3XMSXY-FP13VG/1XMSXY-FP24VG is a top-tier air conditioning solution designed for both residential and commercial spaces. With its high energy efficiency and the ability to connect up to four indoor units, it ensures optimal cooling performance while saving on energy costs. Its compact design allows for easy installation without compromising on power, making it an ideal choice for those seeking reliable and efficient cooling solutions.

Key Features

• High Energy Efficiency: Achieve industry-leading seasonal energy efficiency with advanced technologies and a high-performance compressor.
• Powerful Cooling: Offers a cooling capacity of up to 11.6kW, ensuring a comfortable environment even in large spaces.
• Multiple Indoor Units: Connect up to 4 indoor units to a single outdoor unit for comprehensive cooling coverage.
• Compact Design: The outdoor unit has a space-saving design with dimensions of 950x330x796mm.
• Quiet Operation: Enjoy a peaceful environment with a low outdoor sound level.
• Energy Efficient: Features an energy labelling scheme of 1790/2926kWh for cost-effective cooling.

Product Specifications

• MXY-4H38VG
  • Capacity (Min-Max): 8.0 (1.4-11.6) kW
  • Power Input: 1.62 kW
  • Starting Current: 7.22 A
  • Running Current: 7.22 A
  • Airflow: 59.2 CMM (m³/min)
  • Dimension (W x D x H): 950 x 330 x 796 mm
  • Net Weight: 58 kg
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1 no x 12.70 mm + 3 no x 9.52 mm
  • External Piping - Liquid Diameter: 4 no x 6.35 mm
  • No. of Connectable Indoor Units: 4
  • Refrigerant: R32
  • Power Supply: 230 V, 1 Phase, 50 Hz
• MSXY-FP24VG
  • Rated Capacity: 7.1 kW
  • Power Input: 0.069 kW
  • Running Current: 0.60 A
  • Airflow: 59.2 CMM (m³/min)
  • Dimension (WxDxH): 950 x 330 x 796 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 12.70 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP13VG
  • Rated Capacity: 3.5 kW
  • Power Input: 0.036 kW
  • Running Current: 0.33 A
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

The Mitsubishi System 4 Aircon is ideal for homeowners and businesses seeking efficient and reliable air conditioning solutions. Perfect for those who value energy efficiency and high performance in a multi-unit air conditioning system.
